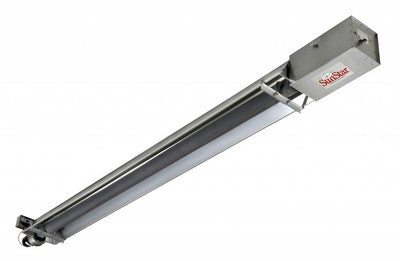

Sunstar Industrial 175k Btu/50ft Straight Tube Stage Heater/ng/single

Sunstar Industrial 175k Btu/50ft Straight Tube Stage Heater/ng/single

Regular price $ 2,171.00 USD
Regular price Sale price $ 2,171.00 USD
Sale Call To Pre-Order

Ships within 5-7 business days

  • Kit Includes 43503210 and 4413800
  • Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
  • 6 different Btu sizes
  • CSA design certified
  • Sidewall or through the roof venting
  • Vented or indirect vented operation
  • Includes 36″ stainless steel gas connector
  • No draft hoods, totally enclosed combustion chamber
  • Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
  • 30 second per-purge period before ignition
  • Diaphragm air switch for proof of venting before gas flow and ignition
  • Heavy duty cast iron burner
  • Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control
  • Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)
  • Diagnostic Monitoring Light System
  • 4” O. D. heat treated aluminized steel combustion chamber (10’ length)
  • Standard highly emissive radiant tubes (10’ lengths)
  • Suitable for horizontal or angle mounting up to 45°
  • Up to 75 feet sidewall vent capability
  • Highly efficient aluminum reflectors
  • Individual reflectors can be rotated up to 45° to direct heat where needed
  • Natural Gas
  • 175,000 BTU
  • 4" vent connection
  • Not for use in residential applications

NOTE: Once Item is Ordered, Cannot be Cancelled
