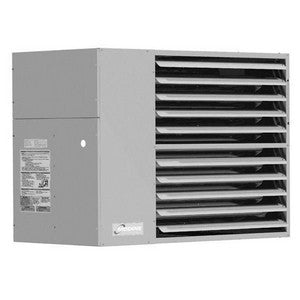

Modine Commercial Workspace - 250k Btu/direct Spark Ignition/lp/separated Combustion/single Stage W/aluminized Steel Heat Exchanger Heater
Modine Commercial Workspace - 250k Btu/direct Spark Ignition/lp/separated Combustion/single Stage W/aluminized Steel Heat Exchanger Heater
Regular price
$ 3,772.00 USD
Regular price
Sale price
$ 3,772.00 USD
Unit price
per
Ships within 5-7 business days
Couldn't load pickup availability
- Specifically designed for environments with hostile atmospheric conditions, such as chemicals, high humidity or negative pressure
- Combustion air is brought in from outside the heated area - either from outdoor air or from an adjacent room - eliminating the need to use contaminated indoor air for combustion
- In-shot burners fire each heat exchanger tube for reliable performance, ease of service and decreased noise on ignition
- Same-size vent and combustion air inlets throughout product line makes installation easier
- Longer allowable vent lengths (up to 50′ vs 30′) versus previous line, providing greater installation options
- Round vent pipe and combustion air inlet pipe connection
- Automatic reset vent pressure switch is designed to prevent operation of the main burner in the event there is restricted venting of the flue
- Integrated direct spark control board provides digital control of the air mover, inducer, ignition, gas valve and flame sense
- Control Step Down Transformer used to step down from 115v to 24v for the gas controls, fan delay relay, field supplied motor start and more
- Remote flame sensor verifies ignition of all burners, monitors the flame single and communicates with the integrated circuit board
- High limit control switch is mounted in the air stream and will shut off the gas supply in the event of overheating
- 6" vent & combustion air connection
- Liquid Propane
- 250,000 BTU
- Direct spark ignition
- Single stage - on/off operation
- Aluminized steel heat exchanger
