Hpc High Capacity Valve Kit

Features:

• Safety Pilot Kit for Natural Gas Applications with Burner having 1/2” Male Threads on Burner Tube
• Can easily Mount Straight out from Burner Pan or has Fittings to allow Valve to move forward and up from the Floor away from the Burner Pan
• Uses White Rodgers High Capacity 142K BTU, 250° Valve

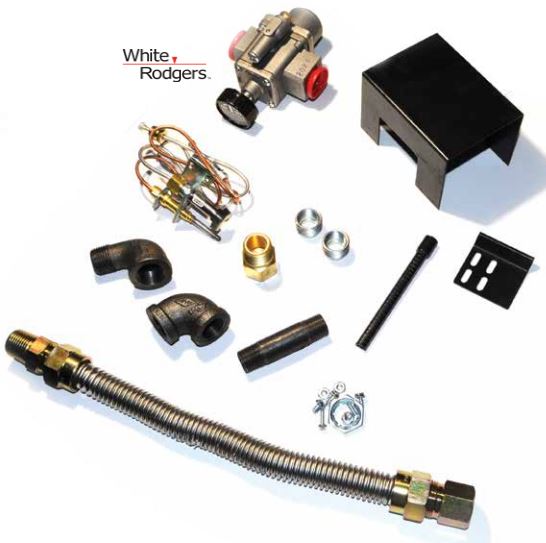

• Kit Includes:
• White Rodgers High Capacity Valve (#100-HC): Side Gas Inlet, 142K BTU, 250° Rating
• 18” Pilot Assembly with Mounting Bracket
• Assorted Fittings for Valve / Burner Connection
• Heat Shield for Valve
• 12” Flex Line for Valve Input
• Black Control Knob with 4” Stem Extension
• 142,000 BTUs

NOTE: For LP Applications use 70LPK-HC Conversion Kit
