Chimney Base Chimney Pot

The Superior Clay "Chimney Base" Chimney Pot

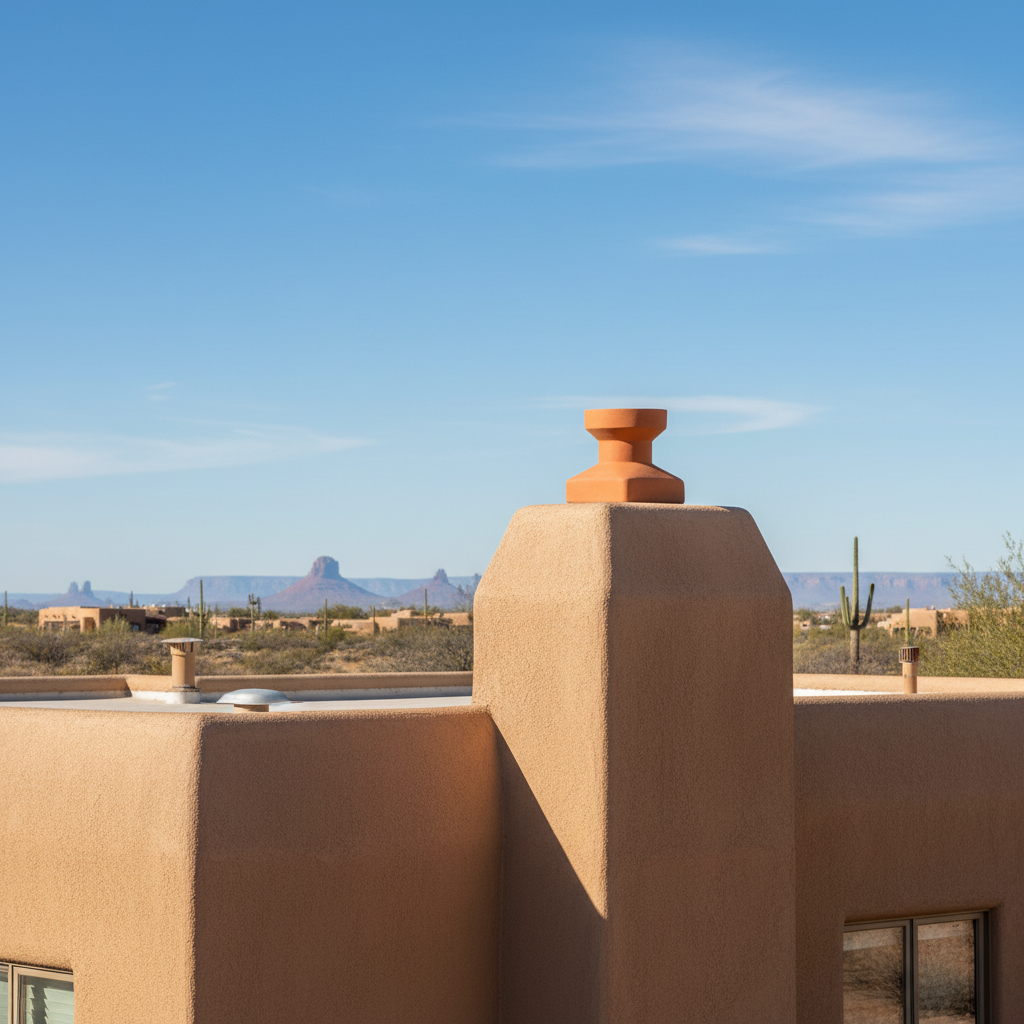

Presenting the "Chimney Base" Chimney Pot by Superior Clay – a foundational and classically styled square-based clay chimney pot designed to provide a tasteful and durable finish to your masonry chimney.

Finish & Customization Options

The Chimney Base Clay Chimney Pot arrives standard in its appealing natural clay finish, showcasing the inherent beauty of the material.

For those seeking a custom touch and enhanced longevity, this chimney pot is available with 8 optional glaze colors. This involves applying a colored glass coating that is expertly fired onto the clay, resulting in a vibrant and highly durable finish that is resistant to both fading and peeling.

• Standard Finish: Natural Clay

• Optional Gloss Glaze Colors: Black, Buff, Salt Glaze (Brown), Brick Red, Sandstone, Blue Limestone, Gray Limestone, and Antique.

• Lead Time for Glaze: Please note that selecting a glazed finish typically adds an additional 4–6 weeks to the order processing schedule.

Shipping & Important Notes

• Enjoy complimentary free shipping on this item.

• Each chimney pot is packaged with premium care to ensure safe and secure transit to your location.

Installation & Critical Considerations

Chimney pots are intended to be securely installed within a bed of mortar on top of your masonry chimney cap.

Flue Liner Compatibility

• The base dimensions of the chimney pot do not need to precisely match your flue liner.

• Crucially, the pot's base must not encroach upon the inside open area of the flue liner.

  • Note: A special exception allows round-based pots to slightly impinge at the corners of a square flue, but by no more than $3/4$ inch (this specific pot has a square base).

• Your flue liner may either extend upwards into the chimney pot or terminate flush with the top surface of the chimney cap.

Reinforced Anchoring (Optional)

For added security against severe weather events such as tornadoes, hurricanes, or earthquakes, supplementary anchoring can be utilized. This involves drilling a $1/4$–$1/2$-inch diameter hole on at least two opposite sides of the chimney pot, allowing a bar to anchor it firmly into the grout or the chimney walls.

Step-by-Step Installation Guide

1. Ensure the chimney pot is positioned perfectly plumb (vertical).

2. Set the chimney pot into a bed of fresh mortar on top of the chimney cap.

3. Confirm that the chimney cap itself is constructed in accordance with ASTM C1283-02 8, or an approved alternative standard.

4. All anchoring hardware used must be composed of either stainless steel or another non-corrosive metal.

5. Apply a mortar seal a minimum of 2 inches up the base of the chimney pot.

6. Perform flashing using the method required by relevant referenced standards.

Safety Warning!

DO NOT use decorative chimney tops on any pre-engineered or prefabricated fireplace/chimney system (often referred to as zero-clearance fireplaces) without explicit written consent from the manufacturer. Improper installation of such products in conjunction with these various metal flue systems could lead to fire and/or carbon monoxide buildup, potentially resulting in property damage and/or death.

Accurate Flue Measurement is Essential

Please be aware that the flue liner sizes listed are NOMINAL dimensions and may not accurately reflect the true measurements of your existing flue liner. Flue dimensions can vary significantly depending on the manufacturer and age of the liner. It is critical to accurately measure your flue liner before ordering a chimney pot to ensure a proper and safe fit.

• Key Reminder: The chimney pot base should not impinge upon the inside surface of the flue liner.

• Sizing Convention: Square flue liners are nominally sized using their OUTSIDE dimensions, whereas round flue liners are nominally sized using their INSIDE dimensions.

Product Specifications
