Camelot Chimney Pot

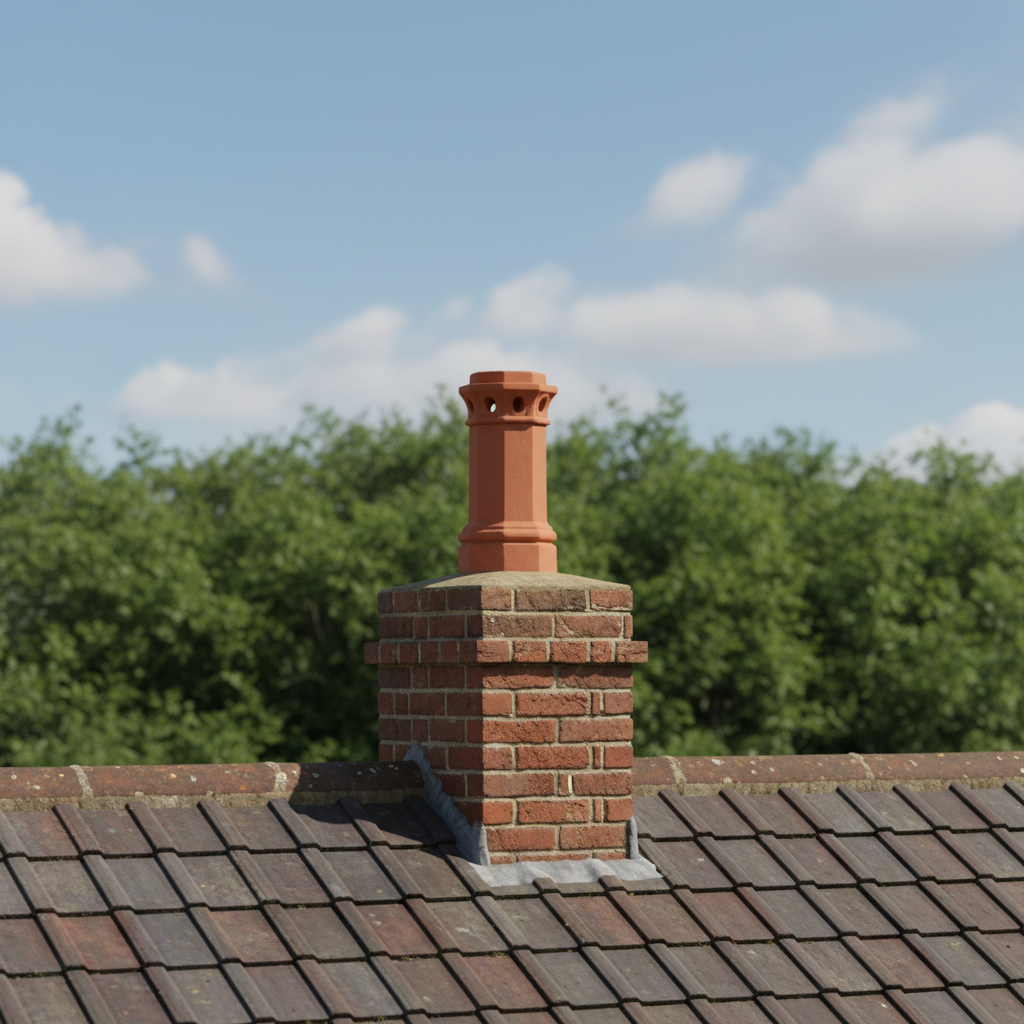

The Superior Clay "Camelot" Chimney Pot

Evoke a sense of timeless grandeur with the Camelot Chimney Pot from Superior Clay. This imposing, round-based clay chimney pot offers both a majestic finishing touch and robust protection for your masonry chimney.

Product Specifications

Finish & Customization

The Camelot Chimney Pot is available standard in its beautiful, natural clay color.

For a personalized touch and enhanced durability, choose from 8 optional glaze colors. This involves applying a colored glass coating that is then fired onto the clay, creating an extremely durable finish that resists fading and peeling.

• Standard Finish: Natural Clay

• Optional Gloss Glaze Colors: Black, Buff, Salt Glaze (Brown), Brick Red, Sandstone, Blue Limestone, Gray Limestone, and Antique.

• Lead Time for Glaze: Please note that glazed finishes typically extend the order processing timeline by 4–6 weeks.

Shipping & Important Notes

• Free Shipping is included.

• Each pot is secured with premium packaging to ensure safe transit.

Installation Guidelines & Critical Considerations

Chimney pots are designed to be securely seated on the masonry chimney cap within a bed of mortar.

Flue Liner Compatibility

• The dimensions of the chimney pot's base do not need to precisely match the flue liner.

• Crucially, the base must not obstruct the interior area of the flue liner.

  • Permitted Exception: A round-based pot may slightly overlap the corners of a square flue, provided this encroachment is no more than $3/4$ inch.

• The flue liner can extend either upwards into the chimney pot or terminate flush with the top surface of the chimney cap.

Anchoring for Extreme Conditions

To prevent damage from severe weather events like tornadoes, hurricanes, or earthquakes, consider additional anchoring. This can be achieved by drilling a $1/4$–$1/2$-inch diameter hole on at least two opposing sides of the pot and using a bar to anchor it into the grout or the chimney walls.

Step-by-Step Installation

1. Ensure the chimney pot is installed perfectly plumb (vertical).

2. Set the chimney pot into a bed of mortar on top of the chimney cap.

3. The chimney cap itself must be constructed in accordance with ASTM C1283-02 8 or an approved equivalent.

4. All anchoring materials used must be stainless steel or another non-corrosive metal.

5. Apply mortar a minimum of 2 inches up the base of the chimney pot.

6. Perform flashing according to the methods required by relevant referenced standards.

Safety Warning!

DO NOT use this decorative chimney top on any pre-engineered or prefabricated fireplace/chimney system (commonly referred to as zero-clearance fireplaces) without explicit written consent from the manufacturer. Improper installation in conjunction with these metal flue systems could lead to severe consequences, including fire and/or carbon monoxide buildup, resulting in property damage and/or death.

Accurate Flue Measurement is Essential

Please be aware that the flue liner sizes listed are NOMINAL dimensions and do not always accurately represent the true measurements of your specific flue liner. Flue dimensions can vary significantly depending on the manufacturer and age of the liner. It is imperative to accurately measure your flue liner before ordering to ensure the chimney pot will fit properly.

• Critical Note: The chimney pot base must not impinge upon the inside surface of the flue liner.

• Sizing Convention: Square flue liners are nominally sized using their OUTSIDE dimensions, while round flue liners are nominally sized using their INSIDE dimensions.
