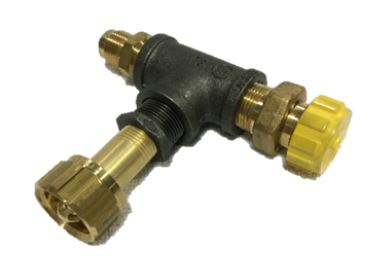

By-pass Return Kit For Dispenser Vapor Equalizer Return Connection

Features:

• Contains (1) each of the following Components: 1-1/4” Excess Flow Valve, 1-1/4” X 2” HD Nipple, 1-1/4” HD Tee, 1-1/4” X 3/4” HD Bushing. 3/4” X 2” Nipple, 3/4” Ball Valve & 5/8” Flare X 3/4” MPT Adapter. (3171A, FS1208B, FS12TE, 7573D, U1-8E, PN12CL, BV10012)
• Easy-Fill Kit is designed to Reinstall the Standard Filler Valve at 90 Degrees for Easy Filling of Elevated Dispenser Systems
• Additionally, this Kit provides a High Capacity Return Line into the Vapor Space of the Tank
• Note: 5/8” Copper Tubing is Sold Separately
• Note: Replacement of the 7579 Filler Valve is Recommended when utilizing older tanks
• Caution should be taken to assure there is Zero Pressure in the tank before removing the Filler Valve
