Black Single Wall Fixed Elbow
Black Single Wall Fixed Elbow
Regular price
$ 72.99 USD
Regular price
Sale price
$ 72.99 USD
Unit price
per
Ships within 5-7 business days
Couldn't load pickup availability

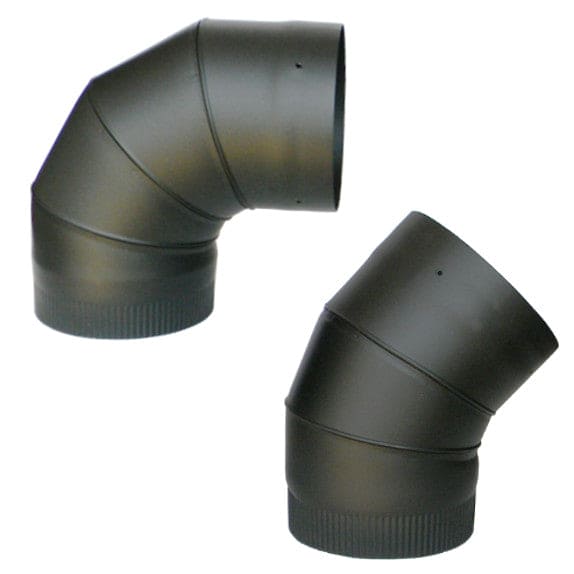

Our Single Wall Stove Pipe Elbows are available in 45 and 90 degrees.
The fixed model is very durable and will not leak, just choose the angle you need for installation.
Offset Charts:
45 Degree Offset Chart
| Pipe Length | 6" Dia.: A Offset | 6" Dia.: B Height | 7" Dia.: A Offset | 7" Dia.: B Height | 8" Dia.: A Offset | 8" Dia.: B Height |
|---|---|---|---|---|---|---|
| 6" | 7.62" | 16.18" | 7.99" | 16.88" | 8.25" | 17.59" |
| 12" | 11.85" | 20.43" | 12.24" | 21.11" | 12.5" | 21.83" |
| 18" | 16.07" | 24.69" | 16.5" | 25.33" | 16.74" | 26.07" |
| 24" | 20.3" | 28.95" | 20.76" | 29.56" | 20.99" | 30.3" |
| 36" | 28.75" | 37.47" | 29.27" | 38.02" | 29.49" | 38.78" |
| 48" | 37.2" | 45.99" | 37.79" | 46.47" | 37.98" | 47.26" |
90 Degree Offset Chart
| Pipe Length | 6" Dia.: A Offset | 6" Dia.: B Height | 7" Dia.: A Offset | 7" Dia.: B Height | 8" Dia.: A Offset | 8" Dia.: B Height |
|---|---|---|---|---|---|---|
| 0" | 11 3/4" | 13 7/8" | 11 3/4" | 14 7/8" | 11 3/4" | 15 7/8" |
| 6" | 16" | 13 7/8" | 16" | 14 7/8" | 16" | 15 7/8" |
| 12" | 22" | 13 7/8" | 22" | 14 7/8" | 22" | 15 7/8" |
| 18" | 28" | 13 7/8" | 28" | 14 7/8" | 28" | 15 7/8" |
| 24" | 34" | 13 7/8" | 34" | 14 7/8" | 34" | 15 7/8" |
| 36" | 46" | 13 7/8" | 46" | 14 7/8" | 46" | 15 7/8" |
| 48" | 58" | 13 7/8" | 58" | 14 7/8" | 58" | 15 7/8" |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
