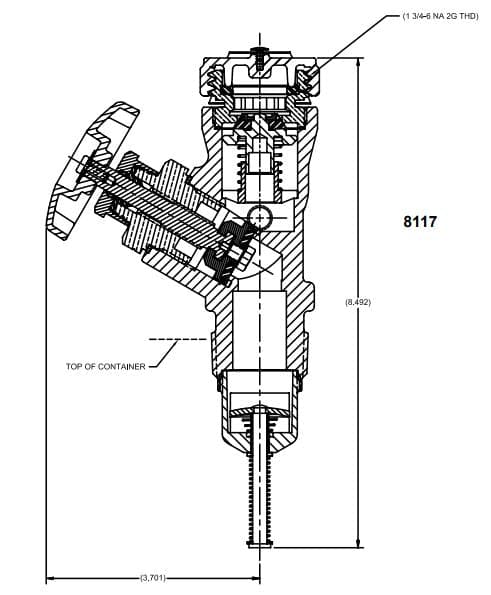

3/4" Rego Fill Valve With 82 Gpm Excess Flow - No Plug

Features:

• Designed primarily for use as a Multipurpose Valve with Combination Filler Valve and Manual Shutoff Valve for the outlet connection of the valve for use on LP-Gas Containers
• This valve incorporates an Integral Excess Flow Valve
• When product is required, the valve must be completely open and back seated to allow the Excess Flow Valve to function
• Designed as a Filler Valve for LP-Gas with Upper Check and Manual Shutoff
• Excess Flow Valve allows for Maximum Filling Rates regardless of the length of the coupling the valve is installed in
• Excess Flow Seat is fully contained in the Tank Coupling for Maximum Protection in the event of External Damage to the valve
• Breakaway Groove protects the ACME in the case of a Drive-Away with the Filler Hose still connected
• V-ring Spring Loaded Stem Assembly requires no repacking of Field Adjustment
• Plugged ¼” NPT Boss allows for a Pressure Gauge to be installed
• The One-Inch Outlet Port plugged

Materials:

Body ....................................................................................... Brass
Inlet Connection................................................................. Brass
Outlet Connection...............................................................Brass
Spring ....................................................................Stainless Steel
Seat Disc .........................................................Synthetic Rubber
V-rings ...................................................................................Teflon
Excess Flow Valve...............................................Stainless Steel
