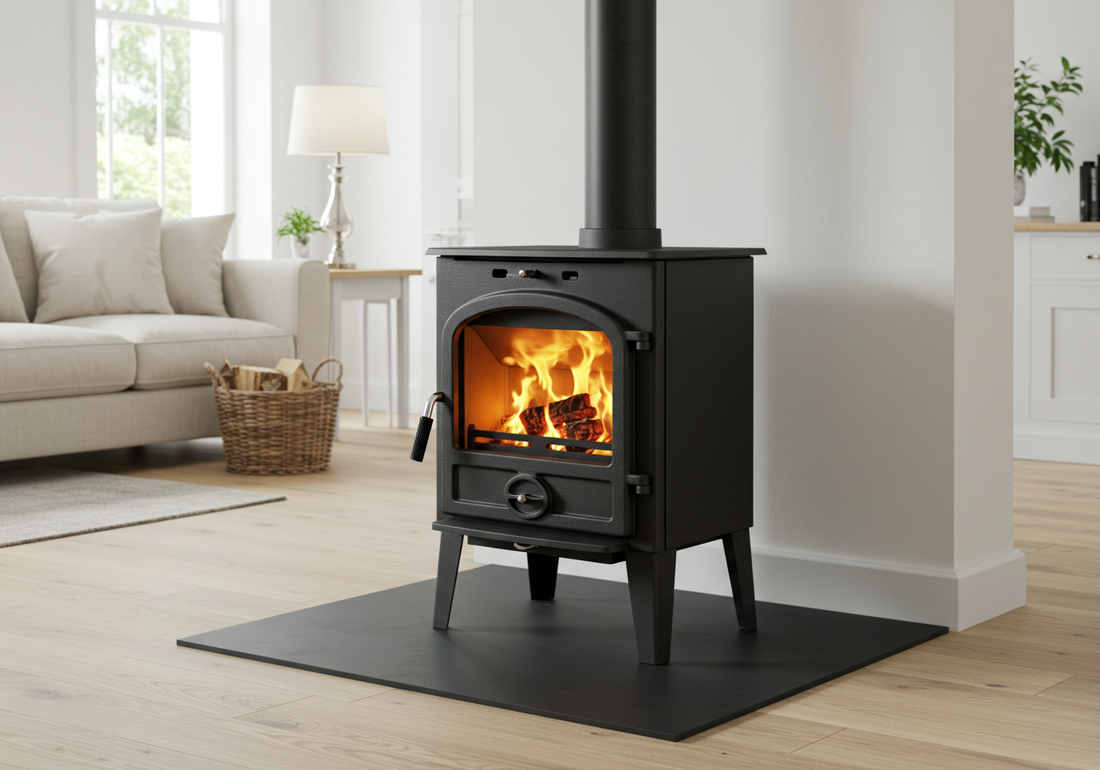

DIY: How to Install a Wood-Burning Stove

Summary:
Installing a wood-burning stove can improve your home’s efficiency and provide cozy warmth. This guide walks you through the entire process, from preparing the floor and walls to venting and final testing. Follow each step carefully, ensuring safety and compliance with building codes. If unsure, consider hiring a professional.



---

DIY: How to Install a Wood-Burning Stove

Table of Contents

1. Preparation: Floor & Wall Protection
2. Cutting Ceiling & Roof Holes
3. Insulation & Chimney Support
4. Installing Roof Flashing
5. Assembling the Chimney
6. Installing the Stove Pipe
7. Installing a Damper
8. Testing Your Stove
9. Key Considerations
10. Should You Hire a Professional?

---

Step 1: Preparation – Floor & Wall Protection

Choosing Floor Protection

• Check your stove’s manufacturer instructions.
• Most stoves require Type 2 thermal protection if placed on combustible flooring.
• Ensure 16” clearance in front and 8” on each side (per UL 1482 standards).
• Use a hearth pad or stove board for adequate protection.

Wall Protection

• Follow clearance instructions from the stove manufacturer.
• If needed, install non-combustible hearth pad wall protection with 1” spacers for ventilation.
• This can reduce required clearance by up to 66%.

---

Step 2: Cutting the Ceiling & Roof Holes

• Use a plumb bob or laser level to align the stovepipe’s center point.
• Cut the ceiling hole according to your chimney pipe’s size specifications.
• Continue this cut through all floors until reaching the roof.

---

Step 3: Insulation & Chimney Support

• Remove insulation around the chimney path.
• Install a ceiling support box to support the weight of the chimney.
• For multi-story homes, install firestop joist shields at each level.
• If passing through an attic, use an attic insulation shield or build a chase.

---

Step 4: Installing Roof Flashing

• Cut a hole in the roof, making it oval-shaped for pitched roofs.
• Remove nails from under shingles to slide the flashing underneath.
• Apply high-temp silicone under the flashing for waterproofing.

---

Step 5: Assembling the Chimney



• Start assembling from the ceiling support box upwards.
• Use Class A insulated chimney pipe with screws to secure sections.
• Ensure the chimney extends at least 3 feet above the roof and 2 feet above any structure within 10 feet.
• Use wall standoffs every 8 feet for stability.
• If the chimney extends over 5 feet, install a roof brace kit.

---

Step 6: Installing the Stove Pipe

• Use single-wall or double-wall pipe, depending on clearance needs.
• Single-wall pipe needs 18” clearance, while double-wall needs 6”.
• Ensure the male end of each pipe points downward.
• Use telescoping pipes for easier installation.

---

Step 7: Installing a Damper

• If your stove lacks built-in draft control, install a stovepipe damper.
• This regulates airflow, maximizing burn efficiency.
• Drill holes in the stovepipe to insert and secure the damper.

---

Step 8: Testing Your Stove

• Light 3–4 small fires to cure the firebricks and paint.
• Ensure smoke is properly vented without rolling into the room.
• If smoke enters the room, check clearances and pipe connections.

---

Key Considerations Before Installing

Choosing the Right Stove

• EPA-rated stoves maximize heating efficiency.
• Choose the stove size based on your room size, not home size.
• Osburn wood stoves offer secondary air burn technology for efficiency.

Building Codes & Regulations

• Always follow local and national codes.
• Chimney pipe should be UL 103 HT listed.
• Maintain proper stove and chimney clearance.

---

Should You Hire a Professional?

4. What’s the difference between single-wall and double-wall stove pipe?

Single-wall pipe requires 18” clearance, while double-wall pipe needs only 6” clearance.



5. How do I prevent smoke from entering my home?

Ensure your chimney is properly installed, follows clearance guidelines, and is drafting correctly.



6. How often should I clean my chimney?

At least once per year, or more frequently if you burn wood daily.



7. Can I vent a wood stove horizontally?

No, a wood stove must be vented vertically to allow proper draft.



8. Is a damper necessary?

Newer EPA-certified stoves have built-in dampers, but older models may require a manual stovepipe damper.

---

By following this guide, you can safely install a wood-burning stove in your home. For high-quality chimney supplies, visit ChimneyCricket.com.
